Yamaha AC1M Concert Cutaway Acoustic-Electric Guitar - Vintage Natural
Want to try it first?
Request a guided session and compare this product with other options at our Nerang store.
About this product
Overview & specifications

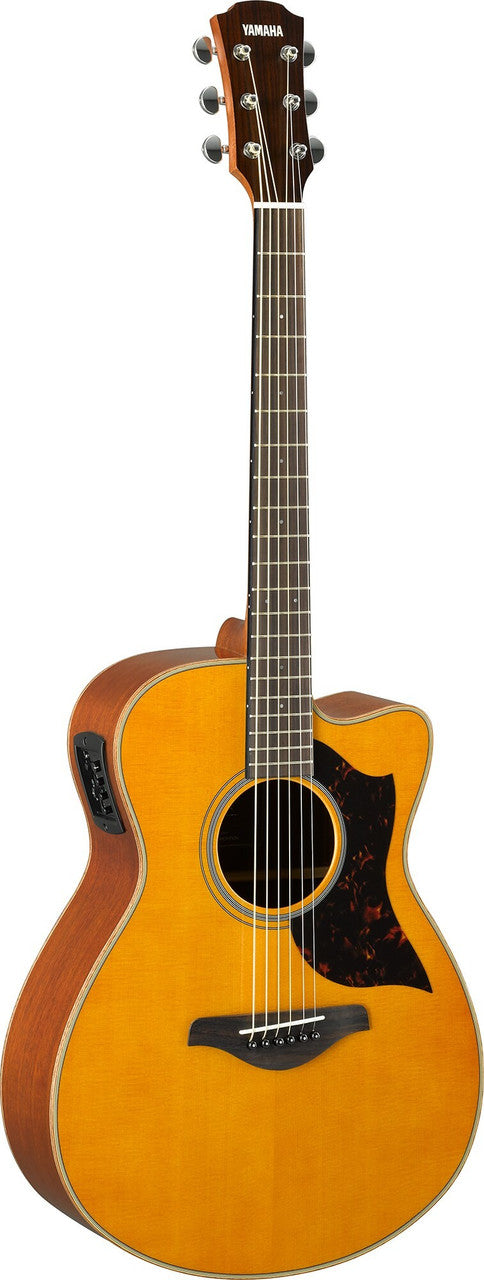

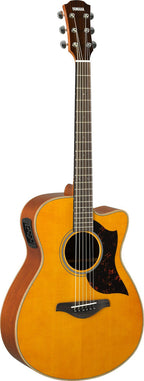

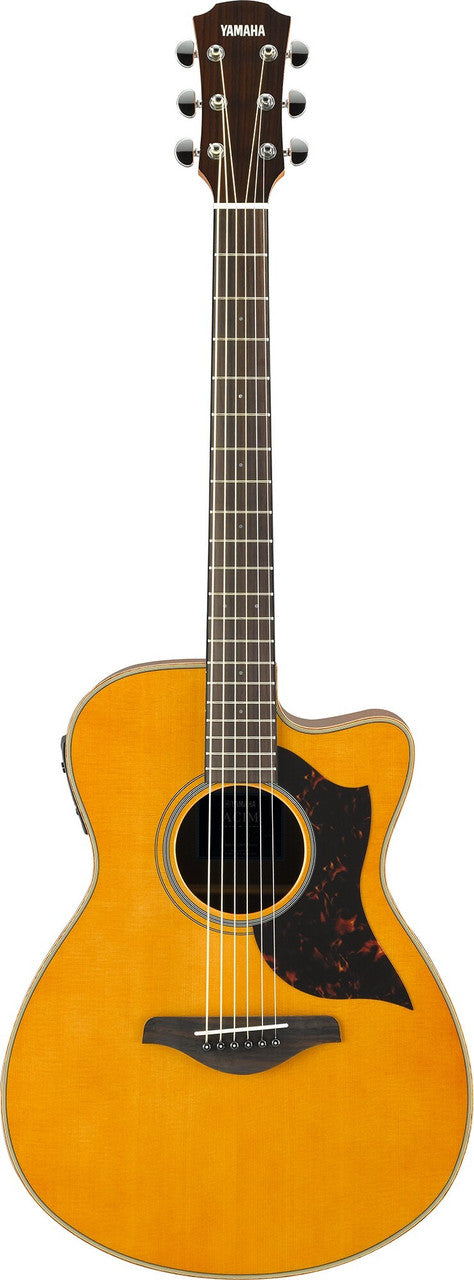

The Yamaha AC1M Concert Cutaway Acoustic-Electric Guitar - Vintage Natural is the entry into the A Series: a solid Sitka spruce top over scalloped bracing, mahogany back and sides and a proper stage preamp, on a concert body with a cutaway. It is the guitar for the player who gigs and wants the A Series neck and pickup without the all-solid price. Vintage Natural gloss finish.
Solid Sitka spruce top with scalloped bracing
The solid Sitka spruce top is braced with scalloped braces, shaved down so the top can move more and respond to a lighter touch. Mahogany back and sides keep the midrange focused and the guitar clear in a band mix. Mahogany and cream binding, a tortoise-pattern pickguard and a black and white rosette finish the body.
SYSTEM72 preamp with tuner and mid sweep
The SYSTEM72 offers volume, three-band EQ and a mid-frequency control, so you can find and cut the exact frequency that is feeding back or clouding the mix rather than guessing. The tuner is built in, and a single line out goes to your DI or amp. Elixir Nanoweb 80/20 bronze light strings are fitted from new.
Concert cutaway, 650mm scale
The concert body measures 380mm wide, 497mm long and 100 to 120mm deep, which keeps it close to the body on a strap while the 650mm scale holds full tension for a strong attack. The cutaway gives clean access above the twelfth fret. Total length is 1038mm.
Three-ply mahogany neck, rosewood fingerboard
The neck is African mahogany in three plies, a construction that resists twisting through humidity changes, with a matt finish. The rosewood fingerboard has a 400mm radius, a 43mm nut and 11mm string spacing, and the rosewood bridge carries a urea saddle and black ABS pins. Die-cast chrome TM29T tuners keep it in pitch.
Set up and ready
The urea nut and saddle are dressed, the 650mm scale is intonated and the SYSTEM72 output is tested. Set up in-store by Guitar World Australia's techs before it ships to you.
Specifications
The finer details
Specifications
| Brand | Yamaha |
|---|---|
| Model | AC1M |
| Body Shape | Concert Cutaway Style |
| Scale Length | 650mm (25 9/16") |
| Top | Solid Sitka Spruce w/Scalloped Bracing |
| Back | Mahogany |
| Sides | Mahogany |
| Neck | African Mahogany 3ply |
| Fingerboard | Rosewood |
| Fingerboard Radius | R400mm (15 3/4") |
| Bridge | Rosewood |
| Nut Width | 43mm (1 11/16") |
| String Spacing | 11.0mm |
| Nut | Urea |
| Saddle | Urea |
| Bridge Pins | Black ABS with White Dot |
| Tuners | Die-cast Chrome(TM29T) |
| Body Binding | Mahogany + Cream |
| Soundhole Inlay | Black + White |
| Pickguard | Tortoise Pattern |
| Body Finish | Gloss |
| Neck Finish | Matt |
| Electronics | SYSTEM72 |
| Controls | Vol/3-band EQ/Tuner/Mid FQ |
| Output | LINE OUT |
| Strings | Elixir NANOWEB 80/20 Bronze Light |
| Body Depth | 100-120mm (3 15/16" - 4 3/4") |
| Body Width | 380mm (14 15/16") |
| Body Length | 497mm (19 9/16") |
| Total Length | 1038mm (40 7/8") |
| Included | Soundhole Cover, Hex Wrench |
| Case | None |
| Colour | Vintage Natural |
