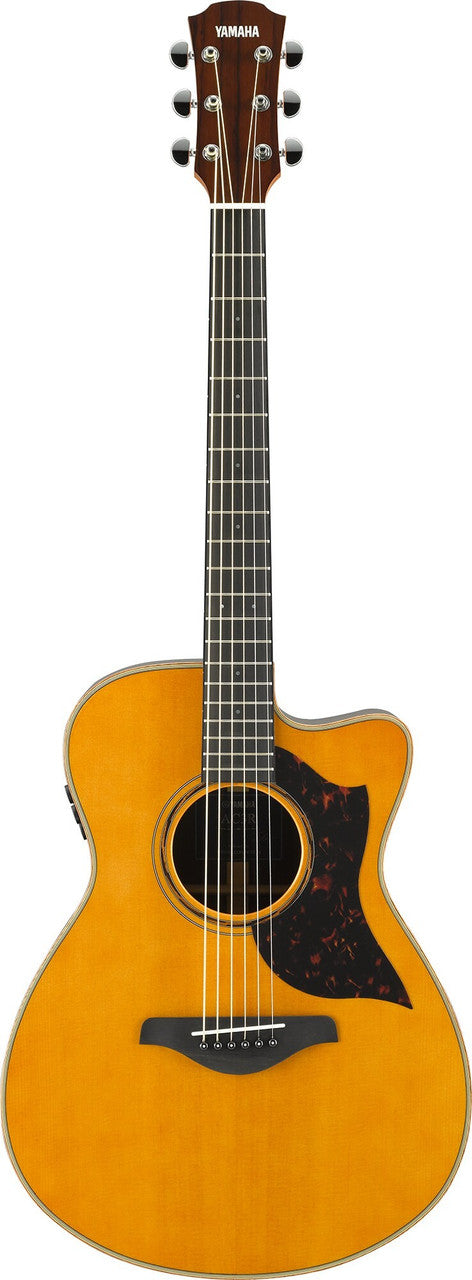

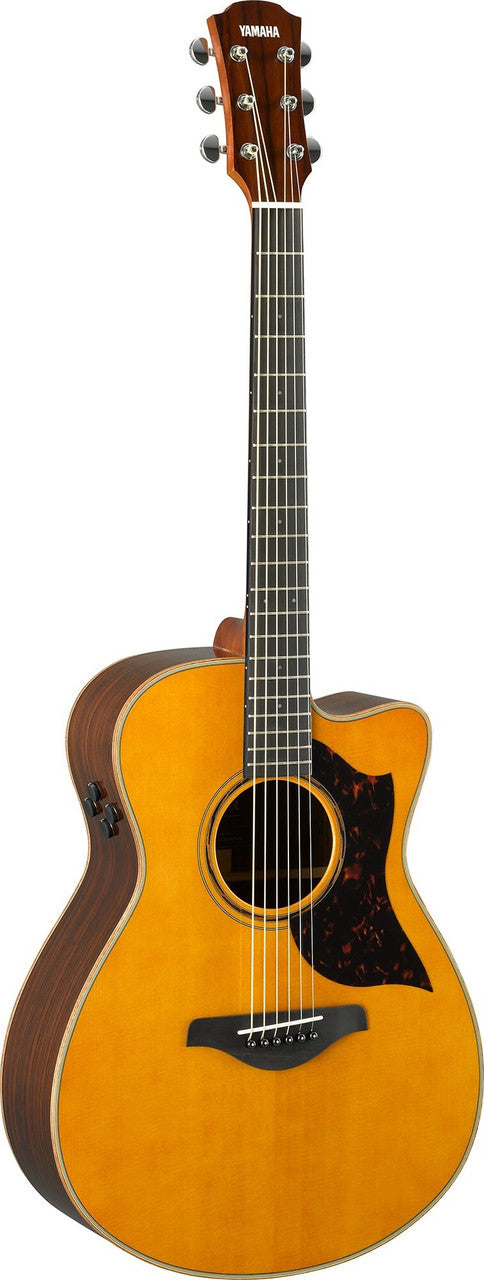

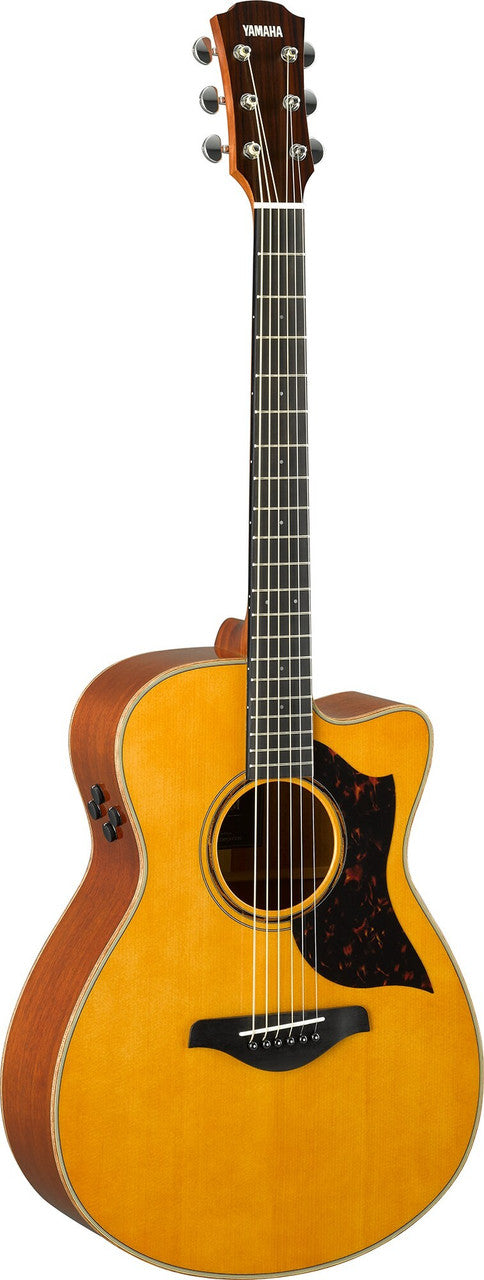

Yamaha AC3R ARE Concert Cutaway Acoustic-Electric Guitar - Vintage Natural
SKU AC3R
Want to try it first?
Request a guided session and compare this product with other options at our Nerang store.
About this product
Overview & specifications
The Yamaha AC3R ARE Concert Cutaway Acoustic-Electric Guitar - Vintage Natural is the A Series stage guitar for the working player: all-solid, with a torrefied spruce top over rosewood and the SRT2 system that lets you choose between two mic types at the control panel. The concert body with a cutaway stays comfortable through a three-hour set. Vintage Natural gloss finish.
Solid Sitka spruce with A.R.E., scalloped bracing
The top is solid Sitka spruce put through Yamaha's A.R.E. treatment, which ages the wood so the guitar responds like one that has been played for years rather than one fresh out of the box. Scalloped bracing beneath it lets the top move more freely for a louder, more open response. Back and sides are solid rosewood, adding depth in the bass and sparkle in the highs, framed by mahogany and cream binding.
SRT2 pickup system with two mic types
The SRT2 (SYSTEM71) combines a piezo under the saddle with a choice of two microphone types, and a blend control sets how much of each reaches the line out. Treble, bass and volume are on the panel with an AFR anti-feedback function, so the sound engineer gets a usable signal without a pedalboard in between. It comes strung with Elixir Nanoweb 80/20 bronze light-gauge strings.
Concert cutaway body, 650mm scale
The concert body is 380mm wide and 100 to 120mm deep, so it sits closer to you than a dreadnought while the 650mm scale keeps full string tension and a strong attack. The cutaway opens up the upper frets for lead lines and chord voicings above the twelfth fret. Body length is 497mm and total length 1038mm.
Ebony fingerboard on a three-ply mahogany neck
The neck is African mahogany in three plies for stability, matt-finished, with a 43mm nut and 11mm string spacing that suits fingerstyle and flatpicking alike. Fingerboard and bridge are both ebony, hard-wearing and fast under the fingers, with a 400mm radius. Die-cast chrome TM29T tuners and black ABS bridge pins with white dots complete it.
Set up and ready
The urea nut and saddle get their action dressed and the 650mm scale is intonated, and the SRT2 output is checked. Set up in-store by Guitar World Australia's techs before it ships to you.
Specifications
The finer details
Specifications
| Brand | Yamaha |
|---|---|
| Model | AC3R |
| Body Shape | Concert Cutaway Style |
| Scale Length | 650mm (25 9/16") |
| Top | Solid Sitka Spruce A.R.E. w/Scalloped Bracing |
| Back | Solid Rosewood |
| Sides | Solid Rosewood |
| Neck | African Mahogany 3ply |
| Fingerboard | Ebony |
| Fingerboard Radius | R400mm (15 3/4") |
| Bridge | Ebony |
| Nut Width | 43mm (1 11/16") |
| String Spacing | 11.0mm |
| Nut | Urea |
| Saddle | Urea |
| Bridge Pins | Black ABS with White Dot |
| Tuners | Die-cast Chrome(TM29T) |
| Body Binding | Mahogany + Cream |
| Soundhole Inlay | Rosewood + Mahogany + Black + White |
| Pickguard | Tortoise Pattern |
| Body Finish | Gloss |
| Neck Finish | Matt |
| Electronics | SRT2 (SYSTEM71) |
| Controls | Vol/Mic Type Select(2 types)/Treble/Bass/SRT-Piezo Blend/AFR |
| Output | LINE OUT |
| Strings | Elixir NANOWEB 80/20 Bronze Light |
| Body Depth | 100-120mm (3 15/16" - 4 3/4") |
| Body Width | 380mm (14 15/16") |
| Body Length | 497mm (19 9/16") |
| Total Length | 1038mm (40 7/8") |
| Included | Soundhole Cover, Hex Wrench |
| Case | Hard Bag |
| Colour | Vintage Natural |
