About this product
Overview & specifications
Yamaha DZR12-D 12-Inch Powered Loudspeaker with Dante is the DZR12 with Dante networking on board, so it takes its feed over the same Ethernet run as a Dante-equipped console instead of a long analogue snake. It keeps the 2000 W Class-D module, 139 dB SPL and 96 kHz DSP of the standard model in the same black plywood cabinet. This is the box for installs, churches and touring racks already living on a Dante network.
Dante on the network, analogue on the back
Dante lets the speaker sit on a network with the console and take audio digitally, which suits an install where the amp rack is a long way from the stage. The analogue side is still there: two combo inputs accept line level up to +24 dBu at 20 kOhm, and two XLR outputs pass signal on, with channel one as a fixed through and channel two switchable between through and DSP out.

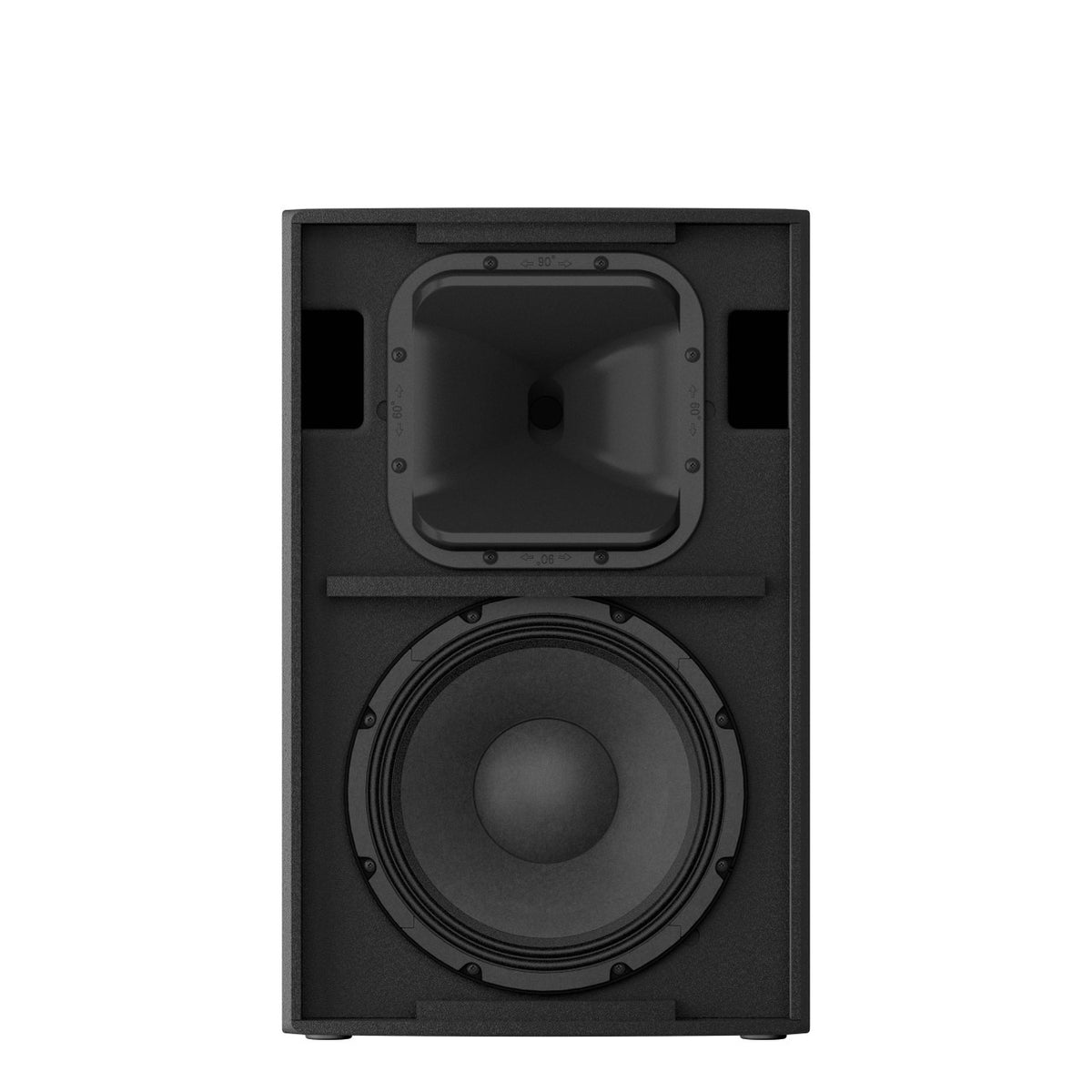

12-inch woofer and a titanium compression driver
The 12-inch cone runs a 3-inch voice coil on a neodymium magnet for a light box with controlled bass. Above the 1.8 kHz crossover a 1-inch throat compression driver with a 2-inch voice coil and titanium diaphragm covers the top through a 90 by 60 degree horn that rotates for vertical mounting.
2000 W Class-D, 139 dB SPL
The amplifier is rated 2000 W, split 1000 W per section, with 950 W continuous divided 850 W to the woofer and 100 W to the top. Maximum output is 139 dB SPL at one metre, which is more than most rooms a 12-inch box will be asked to fill.
96 kHz DSP with FIR-X crossover
Converters and processing run at 96 kHz, and the FIR-X linear-phase crossover keeps the two drivers time-aligned through the handover. The result is a vocal that stays coherent as it crosses from the cone to the horn.
Pole, fly, bracket or wedge
Two 35 mm pole sockets offer level or 7 degrees down, twelve M10 rigging points cover flying, optional UB-DZR12H and UB-DZR12V U-brackets handle walls and ceilings, and the cabinet sits at a symmetrical 50 degree angle as a floor monitor.

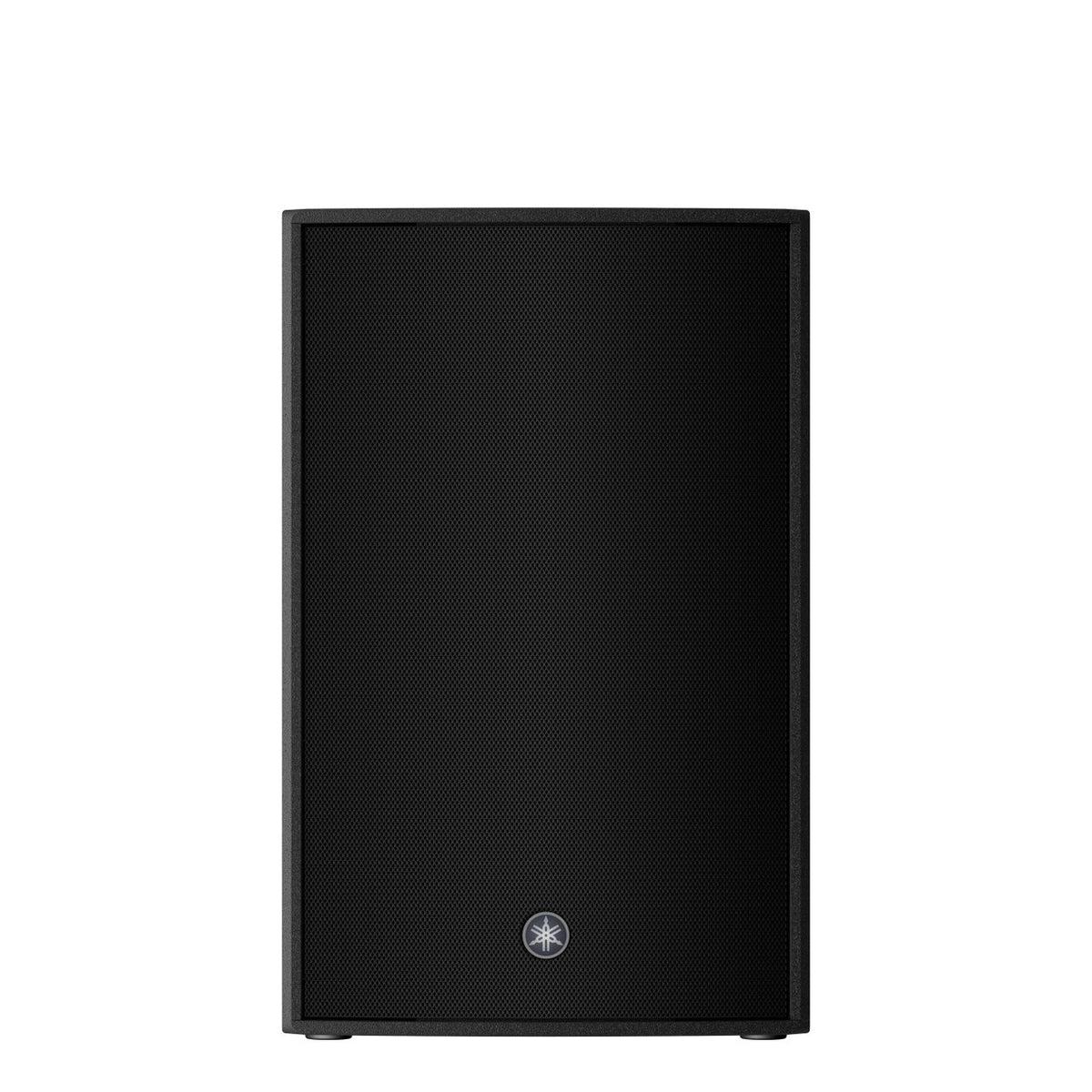

Cabinet, cooling and weight
The plywood enclosure has a durable polyurea coating in black and two die-cast aluminium side handles. A V-Lock IEC inlet, variable-speed fan cooling and a draw of 45 W idle and 150 W at one-eighth power round it out. The box is 450 mm wide, 394 mm deep and 21.4 kg, and an SPCVR-DZR12 cover is available.
Specifications
The finer details
Specifications
| Brand | Yamaha |
|---|---|
| Model | DZR12-D |
| Strings | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White |
| Coverage area | H90ﾟ x V60ﾟ (Rotatable) |
| Crossover | 1.8kHz (FIR-X) |
| Sampling frequency rate | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA |
| Maximum output level (1m; on axis) | 139dB SPL *1 |
| Power rating | 2000W (LF: 1000W, MF/HF: 1000W) *2 |
| Continuous | 950W (LF: 850W, MF/HF: 100W) |
| I/O Connectors | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| AC | IEC AC inlet x1 (V-Lock) |
| Amplifier class | Class-D |
| Cooling | Fan cooling, Variable speeds |
| Power consumption | 45W (Idle), 150W (1/8) |
| Handle | Aluminium die-cast, Side x2 |
| Rigging | M10 x12 |
| Dimensions | 450 mm (17.7") |
| Net weight | 21.4kg (47.2lbs) |
| Options | U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12 |
| Floor Monitor Angle | 50° Symmetrical |
| Pole socket | Φ35 mm x2 (0° or -7°) |
| Colour | 12'' Powered Loudspeaker Black W/ Dante |
