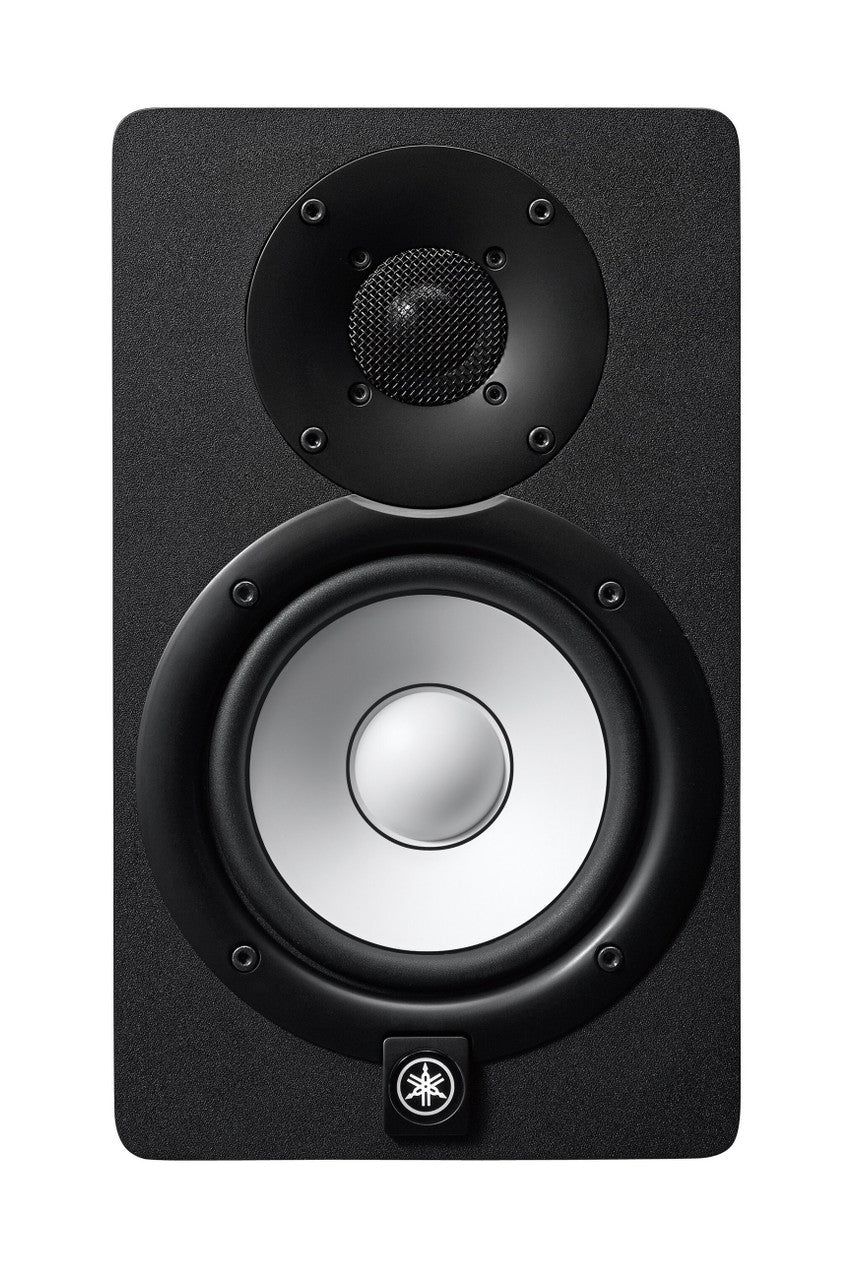

Yamaha HS5 5-Inch Powered Studio Monitor (each)is the compact HS: a 5-inch woofer, a 1-inch tweeter and 70 W of bi-amplified power in a black MDF cabinet that fits a small desk and a small room. Priced and sold as a single speaker, so order two for a pair.
70 W bi-amplified, crossed over at 2 kHz
The 5-inch woofer runs from a 45 W amplifier and the 1-inch tweeter from a 25 W amplifier, with the crossover at 2 kHz. Rated response is 74 Hz to 24 kHz at -3 dB, which is honest for a 5-inch box, and the bass-reflex cabinet gets the most out of the driver without faking the bottom end.
Room Control and High Trim on the back panel
ROOM CONTROL cuts 0, 2 or 4 dB below 500 Hz for when the speaker has to sit close to a wall or on a desk that resonates. HIGH TRIM adds or removes 2 dB at the top, and the LEVEL control has a +4 dB centre click so a pair matches easily.
Connections, size and weight
A balanced XLR and a balanced TRS input cover interfaces, desks and monitor controllers, with -10 dBu sensitivity at 10 kOhm. The cabinet is 222 mm deep, weighs 5.3 kg and draws 45 W, and a power cord ships in the box.
Specifications
The finer details
Specifications
| Brand | Yamaha |
|---|---|
| Model | HS5 |
| Included | Owner's Manual, Power cord |
| Strings | LEVEL control (+4dB/center click) , EQ: HIGH TRIM switch (+/- 2dB at HF) / ROOM CONTROL switch (0/-2/-4 dB under 500Hz) |
| Frequency response (-3dB) | 74Hz - 24kHz |
| Crossover | 2kHz |
| Output power | 70W (LF:45W, HF:25W) |
| Input sensitivity | -10 dBu/10k ohms |
| I/O connectors | XLR3-31 type (balanced), PHONE (balanced) |
| Indicators | Power ON (White LED) |
| Power consumption | 45W |
| Shape | Bass-reflex type |
| Cabinet material | MDF |
| Net weight | 5.3kg (11.7 lbs.) |
| Packaging | Single |
| Colour | 5'' Studio Monitor |
