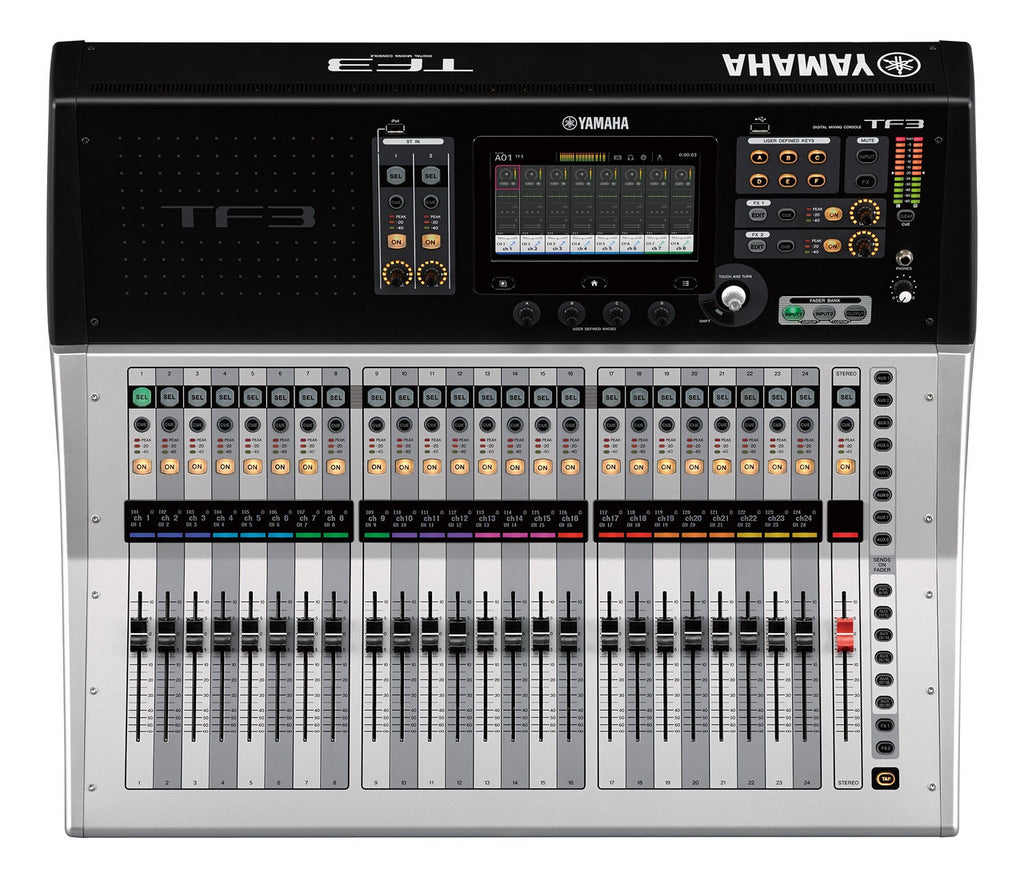

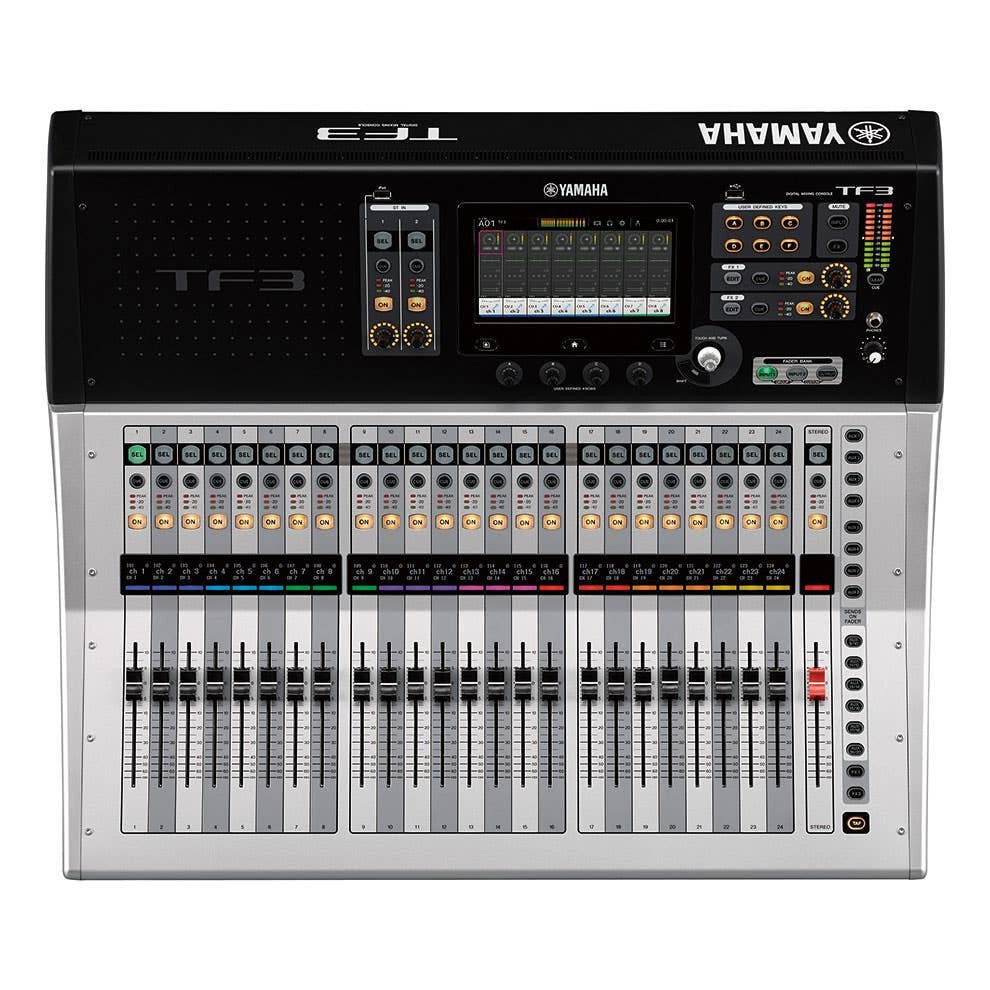

Yamaha TF3 24-Channel Digital Mixer
Want to try it first?
Request a guided session and compare this product with other options at our Nerang store.
About this product
Overview & specifications
Yamaha TF3 24-Channel Digital Mixer is the mid-size console for a club, a touring act or a house of worship that needs 24 recallable preamps, motorised faders and a mix that comes back exactly as it was saved. TouchFlow Operation means the channel you touch is the channel on screen, which keeps a fast changeover calm. It also records the show, with Nuendo Live included.
TouchFlow Operation on 100 mm motorised faders
Touch a channel and its EQ, dynamics and sends appear in front of you, ready to adjust. The faders are 100 mm motorised units with 10-bit resolution and a range from +10 dB down to -138 dB before minus infinity. Recall a scene and every fader travels to its stored position, so the second band's soundcheck starts from where you left it.
24 recallable D-PRE preamps
All 24 D-PRE preamps store their gain with the scene, so each act's inputs are already right when they walk on. On a night with three bands and 20-minute changeovers, that recall is the difference between mixing the show and rebuilding it.
Eight effects, ten graphic EQs, eight DCA groups
The onboard DSP carries eight effects engines and ten graphic EQs, so reverbs, delays and monitor-wedge EQ live inside the console rather than in a rack. Eight DCA groups let you ride all the drums or all the vocals on one fader without summing them, on top of a stereo bus and a sub bus. A single expansion slot accepts an optional expansion card for connecting a stage I/O rack.
Audio performance in numbers
Total harmonic distortion is under 0.05% from 20 Hz to 20 kHz at +4 dBu into 600 ohms, and frequency response is +0.5, -1.5 dB across the same band. Dynamic range is 110 dB at the DA converter and 107 dB input to omni out, equivalent input noise is -128 dBu, and adjacent-channel crosstalk is -100 dB.
Recording, size and power
Nuendo Live ships with the console for multitrack capture, alongside a quick guide and power cord. The TF3 is 866 mm wide and 599 mm deep, weighs 17.0 kg, and runs on 100 to 240 V at 110 W. An FC5 foot switch is optional.
Specifications
The finer details
Specifications
| Brand | Yamaha |
|---|---|
| Model | TF3 |
| Included | Quick Guide, Power Cord, Nuendo Live |
| Strings | Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C |
| Outline | 32 + 1 (Master) |
| Input channel functions | 8 DCA Groups |
| I/O | 32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) |
| On-board processors | 8 Effects + 10 GEQ |
| Fader | 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders |
| Total harmonic distortion | Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz) |
| Frequency response | +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT |
| Dynamic range | 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. |
| Hum & noise level | –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) |
| Crosstalk | –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. |
| Power requirements | 100–240 V 50/60 Hz |
| Power consumption | 110 W |
| Dimensions | 866 mm (34.1in) |
| Net weight | 17.0 kg (37.5lb) |
| Options | Expansion Card, Foot Switch (FC5) |
| Colour | 24-Channel Digital Mixer |
