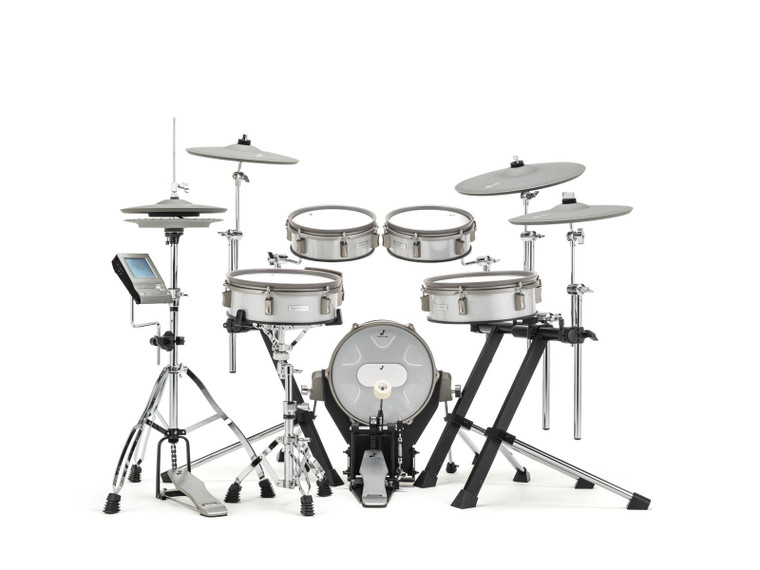

EFNOTE EFD-3B Electronic Drum Kit w/Hardware

EFNOTE 3B Electronic Drum Kit - Guitar World Australia

• Versatile setup with 2x crash cymbals for playability
• Clear and warm sound crafted by EFNOTE experts
• Tru-Motion hi-hat for precise practice
• 12 x 4'' kick with monocoque FRP shell for durability
• 3-zone 360° cymbals with responsive thin edge
• Ultra-compact sound module with intuitive interface
• Bluetooth audio-in for playing along with music
• On-board recording and stroke analysis for training

Versatile setup with 2x crash cymbal
Best for who:

• Need playability with 2x standard crash cymbals
• Want to get started with a complete setup

The Rich Sound

• Clear and warm sound loved by professionals
• Recorded and mastered by EFNOTE, not third parties
• 99% focused on acoustic drum sound

Best Training Partner

• Tru-Motion 2-piece hi-hat cymbal for practicing tight hi-hat work
• ELISE Sensing Processor capable of expressing delicate ghost notes
• Fast and accurate response timing

Cool Appearance

• Big stage presence not found in a small tower-style kick
• Clean and dignified, unleashes drummers from old e-drums design

Drums & Cymbals

Bigger and Stable Kick

• 12 x 4"", 6 lugs, 2ply mesh drum head
• Monocoque FRP shell for stiffness and durability
• Stable multi-sensing for single/double beater(s)
• Rugged spars with rubber/spike tips

2-Piece Hi-Hat

• 12"" top/bottom cymbals
• World's first multi-optical sensing to capture the motions in 3D
• Tru-Motion technology for expressiveness leap
• 360° free-swinging top/bottom cymbal design

EFNOTE's Unique Side-Rim

• Easy, intuitive and reliable
• No switch operation required
• Elegant arc design

3-Zone 360° Cymbals

• 14"" crash cymbal, 3-zone (bow/edge/cup)
• 16"" ride cymbal, 3-zone (bow/edge/cup)
• Multi-sensored 360° play/choke area
• 360° free-swinging design
• Responsive thin edge

Monocoque Drum Shells

• 10 x 3.5"" and 12 x 4"", 6 lugs, 2ply mesh drum heads
• Monocoque FRP shell for stiffness and durability
• Multi-sensor for hotspotless and high-resolution sounding

Suspended Tom Mount

• Softer striking feel and less rebound
• Anti-crosstalk vibration

Beautiful Cymbal Surface

• Elegant warm-gray surface with fine engravings
• Clean silicone rubber surface that is resistant to drumstick marks

λ (Lambda) Tripods

• Easy and flexible setup with independent rack stand design
• Stable metal tripod stands
• Comes with three lambda stands.

Sound Module

Ultra-Compact Sound Module

• Ultra-small form factor with uncompromised features
• Metal chassis and aluminium finish
• High quality DAC and audio circuit
• High power headphone amplifier
• Touch screen intuitive user interface

ELISE Sensing Processor

• Capturing drummer's intentions from each stroke
• Low latency, wide dynamic-range, consistent and stable sensing
• Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads

Full-Scale Acoustic Sound

• Full stereo acoustic drum/cymbal samples recorded by EFNOTE
• Tru-Aco sound technology provides real drum/cymbal sound behaviours
• Raw sound without re-synthesis

For Training

• Multi-function metronome with beat LED indicator
• Built-in metronome speaker for daily training without headphones
• On-board drum recording function (15 tracks)
• Stroke Analyzer
• Rhythm Box feature provides over 90 basic drum beats

For Recording

• USB 8-ch individual audio outputs with Mac / Windows (ASIO)
• USB 2-ch audio inputs for playback
• Analog 4-ch audio outputs
• USB MIDI in/out with individual MIDI channels
• MIDI output (5-pin DIN)

For Small Gigs

• Setlist feature enables you to configure kit order with tempo for each song
• Kick and Snare can be output individually with analog 4-ch outputs
• Click and Audio-In can be assigned only for headphones
• High-power headphones output
• MIDI output (5-pin DIN)

Stroke Analyzer

• ""Stroke Scope"" displays your strike points on time-line
• ""Accuracy Score"" estimates your strike accuracy

Sound Edit

• Tuning, Muffling, 2-band EQs for each pad
• Pad layer function can overlay two sounds
• User Inst Library enables you to store 128 customized instruments
• On-board reverb
• Dedicated level control screen

Flexible Audio Routing

• 10-ch output buses
• Flexible output routing for each pad
• Output assignable click
• Output: 4-ch analog / 8-ch USB
• Input: Analog / Bluetooth / 2-ch USB

Bluetooth

• Bluetooth audio-in provides you to play along with Spotify / YouTube with your smartphone
• Bluetooth MIDI
• EFNOTE Tools App for control remotely
