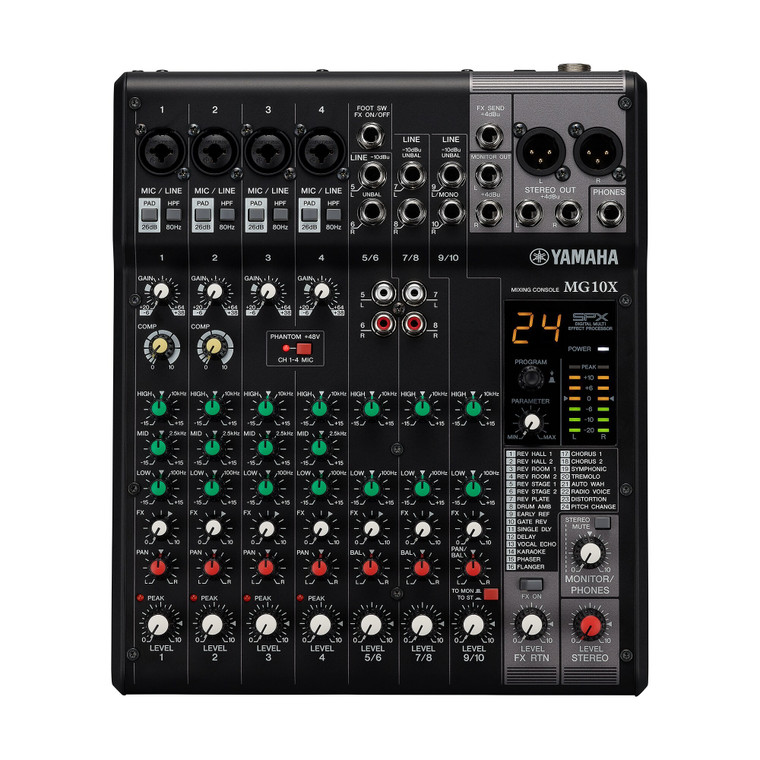

Yamaha MG10XU 10-Channel Analogue Mixer with Effects and USB is the 10-channel analogue desk for a solo act, a duo, a podcast or a small rehearsal room that wants four real mic preamps, onboard reverb and a USB interface in a box that fits in a backpack. It mixes the gig, then records it, without a second piece of gear.
Four mono channels take a mic or a line source through a D-PRE preamp with +48 V phantom power and a 26 dB pad, with equivalent input noise of -128 dBu at full gain. Three stereo inputs cover a keyboard, a backing track and a laptop. Two channels have a one-knob compressor that moves the threshold from +22 dBu to -8 dBu and the ratio up to 4:1 as you turn it, and every channel gets 15 dB of boost or cut on a 10 kHz high shelf, a 2.5 kHz mid and a 100 Hz low shelf.
The SPX processor holds 24 effect programs with one parameter knob, fed from the single aux send and returned to the mix, and a foot switch jack lets an optional FC5 mute the return between songs. The USB interface runs two channels in and two out at up to 24-bit, 192 kHz, with download details for Steinberg Cubase AI and a Cubasis LE iOS licence in the box.
The metal chassis is 308 mm wide, 294 mm deep and weighs 2.1 kg, powered by the included PA-10 AC adaptor and drawing 22.9 W. Two 7-segment LED meters read from -20 dB to peak, channel crosstalk is rated at -83 dB, and the optional BMS-10A adaptor mounts the whole desk on a mic stand.
| Brand | Yamaha |
|---|---|
| Model | MG10XU |
| Included | Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5 |
| Strings | Operating Temperature: 0 to +40˚C |
| Outline | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
| Bus | Stereo: 1, AUX[FX]: 1 |
| Input Channel Function | 26 dB (Mono) |
| COMP | 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] |
| Hum & noise level | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Crosstalk | -83 dB |
| Power requirements | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha |
| Power consumption | 22.9 W |
| Dimensions | 308 mm (12.1") |
| Net weight | 2.1 kg (4.63 lbs.) |
| Colour | 10 Channel Analog Mixer W/ Effects & Usb I/O |
