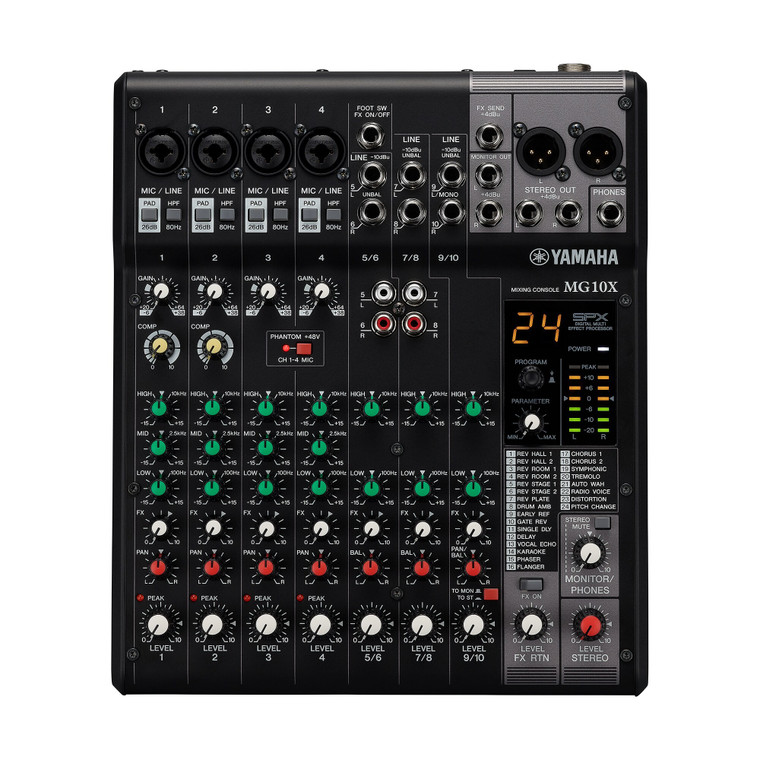

The Yamaha MG10XUF 10-Channel Analogue Mixer with Effects, USB and Faders is the small-format desk for the band running its own front of house, the church with a four-mic Sunday and the home studio that wants a real mixer in front of the interface. It gives you four D-PRE mic preamps, three stereo line inputs, SPX effects and a 24-bit/192 kHz USB interface in a metal chassis. Choosing the F model means faders where the XU has rotary knobs, and once you have mixed a live set on faders you will not go back.
Four mono channels carry Yamaha's D-PRE microphone preamps with +48 volt phantom power for condensers, and a hum and noise figure of -128 dBu on the mic input means the gain can go up without the hiss following. Three stereo line channels take keyboards, playback and a second interface, and the stereo bus feeds a pair of balanced XLR outputs, a monitor output, a headphone output and one aux send.
Two of the mono channels have Yamaha's 1-knob compressor, which sweeps threshold from +22 dBu down to -8 dBu and ratio from 1:1 up to 4:1 with a single turn, with attack around 25 milliseconds and release around 300 milliseconds. Turn it up on a vocal and the level evens out without you thinking about it. Each channel's three-band EQ offers 15 dB of cut or boost at a 10 kHz high shelf, a 2.5 kHz mid peak and a 100 Hz low shelf.
The on-board SPX processor holds 24 effect programs with a single parameter control to tune each one, and returns to the mix on its own FX bus. An optional FC5 foot switch turns the effect return on and off, so a singer can kill the reverb between songs from the stage. The effect send is the mixer's one aux, which keeps the signal path simple.
The two-in, two-out USB audio interface runs up to 24-bit/192 kHz, so the stereo mix goes to a laptop for recording or streaming and a playback track comes back into the desk. Steinberg's Cubase AI is included as a download, along with a Cubasis LE licence for iOS, which means the software side is covered on day one.
Long-throw faders replace the rotary level controls of the standard MG10XU, and a peak LED on each channel lights when the post-EQ signal is 3 dB from clipping. The stereo bus has a pair of seven-segment LED meters reading from -20 dB to peak. The impact-resistant metal chassis measures 244 millimetres wide by 390 millimetres deep and weighs 3.3 kilograms, and it runs from the supplied PA-10 AC adaptor drawing 22.9 watts.
| Brand | Yamaha |
|---|---|
| Model | MG10XUF |
| Included | Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Foot Switch FC5 |
| Strings | Operating Temperature: 0 to +40˚C |
| Outline | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
| Bus | Stereo: 1, AUX[FX]: 1 |
| Input Channel Function | 26 dB (Mono) |
| COMP | 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] |
| Hum & noise level | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Crosstalk | -83 dB |
| Power requirements | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha |
| Power consumption | 22.9 W |
| Dimensions | 244 mm (9.6") |
| Net weight | 3.3 kg (7.3 lbs) |
| Colour | 10 Channel Analog Mixer W/ Effects & Usb I/O (Fader Variant) |
